Bluetooth GPS Receiver GPS-BT110 |
|
| |
|
| |
|
|
Introduction |
|
The compact Bluetooth GPS receiver GPS-BT110 with the newest SONY 4th generation chipset enables the mobile devices e.g. PDA, laptop or Bluetooth cell phone to receive wireless GPS data for perfect navigation systems.
|
|
| |
|
Application |
|
| Vehicle tracking and location-based services
Marine and boaters guidance
Car navigation and automobile tracking system
Mobile and navigation consumer application
Mapping device |
|
| |
|
Features |
|
12 parallel satellite-tracking channels for fast acquisition and reacquisition
Built-in WAAS/EGNOS demodulator without any additional hardware (optional)
Provide superior navigation performance in urban canyon and foliage environments
Support NMEA01 83 v3 .01 data protocol or SONY proprietary message
Built-in rechargeable Lithium-ion battery with low battery management
Power off GPS receiver and then Bluetooth automatically if Bluetooth connection is off
Li-ion battery provides more than 12 hours of use in connection
Built-in rechargeable battery for memory, RTC backup and for fast TTFF
Bluetooth version 1.2 / Class 2 operation / Serial Port Profile (SPP)
Provide UART port to connect to other system without Bluetooth device
Allow wired and wireless connection to co-work simultaneously
Built-in patch antenna and support external active antenna to getting better satellites signal

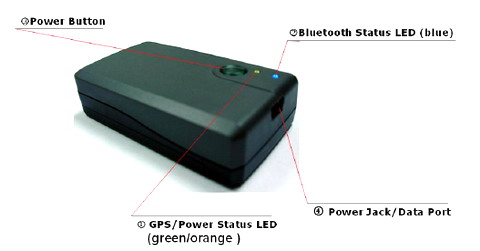

3 colors LED to show the status of Bluetooth/GPS/Power activities of this device
Ultra small, sleek, and lightweight design, easily fits in hand
|
|
| |
|
| |
|
Specifications |
|
| GPS receiver |
L1, C/A code, 12 channels |
| Tracking sensitivity |
–152dBm (average) or better |
| Acquisition sensitivity |
–139dBm (average) or better |
| TTFF (Time to First Fix) |
| Cold Start: 50s (average) / 60s (95% possibility) |
| Warm Start: 35s (average) / 40s (95% possibility) |
| Hot Start: 2s (minimum) / 6s (95% possibility) |
|
| Positioning accuracy |
| Standard Positioning Service (SPS), WAAS (optional) |
| 2DRMS: approx. 5m |
|
| Measurement data output |
| Update time: 1 second |
| NMEA output protocol: V.3.01 |
| Baud rate: 38400 bps (8-N-1) |
| Datum: WGS-84 |
| Type: GGA, GSA, GSV, RMC |
|
| Power consumption |
68mA (average) |
| Bluetooth |
| Bluetooth version 1.2 compliant |
| Class 2 operation (up to 10 meter range) |
| Serial Port Profile (SPP) |
|
| Output terminal |
Type B Mini-USB (TTL Level) |
| Antenna Type |
Built in patch antenna |
| Battery |
3.7V 900mAh Li-ion battery, built-in charger |
| LED |
Power (red), GPS (green), Bluetooth (blue) |
| Dimension |
| 62(L) x 37(W) x 14(H) mm (without housing) |
| 68.3(L) x 40(W) x 17.6(H) mm |
|
| Weight |
58g |
| Operating temperature |
-20°C ~ +60°C |
| Storage temperature |
-20°C ~ +60°C; Battery: -20°C ~ +45°C |
| Certificate |
CE, FCC, BQB |
|
| |
|
Package Content |
|
| Bluetooth GPS Receiver GPS-BT110
Li-ion rechargeable battery
Car charger
USB charging cable
Quick guide |
|
| |
|
