FiDA2100 M1 Fiber Digital Speaker |
|
| |
|
| |
|
|
Introduction |
|
| PLANK FiDA2100 M1 fiber digital speaker is a 2.1 speaker system designed with PLANK's unique NyX5® technology and tuned by PLANK's PKAD2140 digital audio processor. With these integrated technologies, FiDA2100 M1 can receive and playback both of the digital audio signals (S/PDIF) and analog audio signals from the inputs.
|
|
| |
|

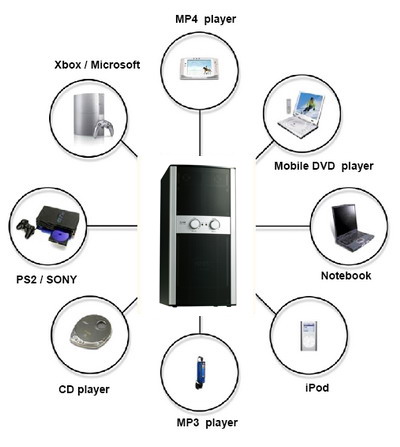

Applications |
|
|
| |
|
Features |
|
| Ultra low signal attenuation through optical fiber input (0.01dB/M)
Very short internal analog signal transmission
Full digital audio format
Easy installation through POF cable (up to 50M with 2.2~4mm POF cable)
No electromagnetic emission with fiber cable
High SNR and low THD
Full digital design
Advanced NyX5® technology tunes 5 speakers into 2.1 system
Full digital signal processing by advanced PKAD2140 audio processor
Optical S/PDIF and analog Line-In input
1000W PMPO speaker output
Ease-Of-Move, Ease-Of-Use, Plug-N-Play |
|
| |
|
Specifications |
|
Audio Processing
|
Digital I2S Stereo format |
| Resolution |
Up to 24-bit |
| Sampling Rate |
Up to 96 KHz |
| R.M.S. |
40Watts Continuous |
| P.M.P.O |
1000Watts |
| T.H.D. |
< 1% (Amplifier Section) |
| S.N.R. |
> 93dB PSNR, 98dB DR |
| Bandwidth |
48 – 20,000 Hz |
| Speaker Driver Units |
| Tweeter 1.0” 8Ω 3W x 2 |
| Woofer 2.5” 8Ω 7W x 2 |
| Subwoofer 5.2” 4Ω 20W x |
|
| Weight |
4.25 Kg |
| Dimension |
35cm x 17cm x 18cm |
| Certificate |
CE / FCC |
| Others |
Magnetic Shielding for speaker driver, Wooden Cabinet |
|
| |
|
Package Content |
|
| FiDA2100 M1 Speaker
RCA Adapter
Toslink/MiniPlug Adapter
Power Cable
Stereo Cable
Optical Audio Cable (3M)
User Guide
|
|
| |
|
FiDA2100 & Sony in Asia Game Show |
|
|
| |
|
